The “AE-SMI” is a computerized system. The computer is used to configure and monitor the response and state of the servomotor controlsystem, allowing the visualization of the current position, speed and torque value in a customizable time-dependent chart, the state of thedigital and analog input and output signals, the type of chosen control, etc.
SPECIFCATION

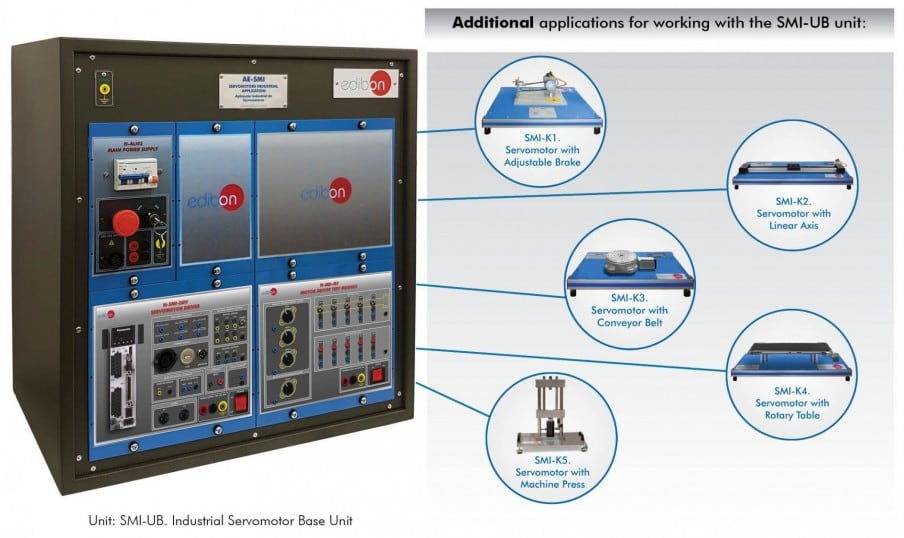

SMI-UB. Industrial Servomotor Base Unit, is composed by the following modules
- N-ALI02. Domestic Main Power Supply Module.
Supply voltage (Single-Phase): 220 VAC, PH+N+G.
ON-OFF removable key.
Output Voltage Connections:
Two Single-Phase: 220 VAC.
Single-Phase supply wire connecting plug.
Differential magnetothermal, 2 poles, 25A, 30mA AC 6KA
- N-SMI-DRV. Servomotor Driver.
Supply voltage (Single-Phase): 220 VAC PH+N+G.
Power output: 400 W.
USB connector to PC.
Low electromagnetic interference.
IGBT technology with PWM sinusoidal signal control.
High-resolution encoder with a resolution of 23 bits: 8388608 pulses per revolution.
Digital signals:
Six Multipurpose digital inputs
Ten Multipurpose digital outputs
Two pulse digital inputs
Six Pulse digital outputs from the encoder
Analog signals:
One analog input with a very high resolution ADC (16-bits),
Two analog inputs with high resolution ADC (12-bits)
Two analog outputs, with a voltage range from 0V to 10V
Seven Different servomotor controls
- N-MD-MT. Motor Driver Test Module.
Supply voltage (Single-Phase): 220 VAC PH+N+G
Ten Digital Signal Generators
One Pulse Signal Generator
Three Analog Signal Generators
