SPECIFICATIONS
The “AEL-AD5” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH+N.
ON/OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push button.
• N-CTI10. Multi-function Timer Module.
Variable timing range.
Three mode selection.
Potentiometer.
Double terminal.
Nominal voltage: 230 VAC.
• N-INT21. Switch + Commutators Group + Bell Push-button Module (2 units).
Nominal voltage: 230 VAC.
• N-LAM08. Two Lamp-holders + Incandescent Lamps Module (2 units).
Voltage supply: 230 VAC (PH+N).
Two bulbs:
Consumption: 40 W each one.
Two terminals each one.
• N-LAM13. Low Consumption Fluorescent Lamp Module.
Nominal voltage: 230 VAC.
Nominal power: 6 W.
• All necessary cables to realize the practical exercises are included.
Cables and Accessories, for normal operation
AEL-AD5 | LIGHTING APPLICATION WITH TIMER SWITCH

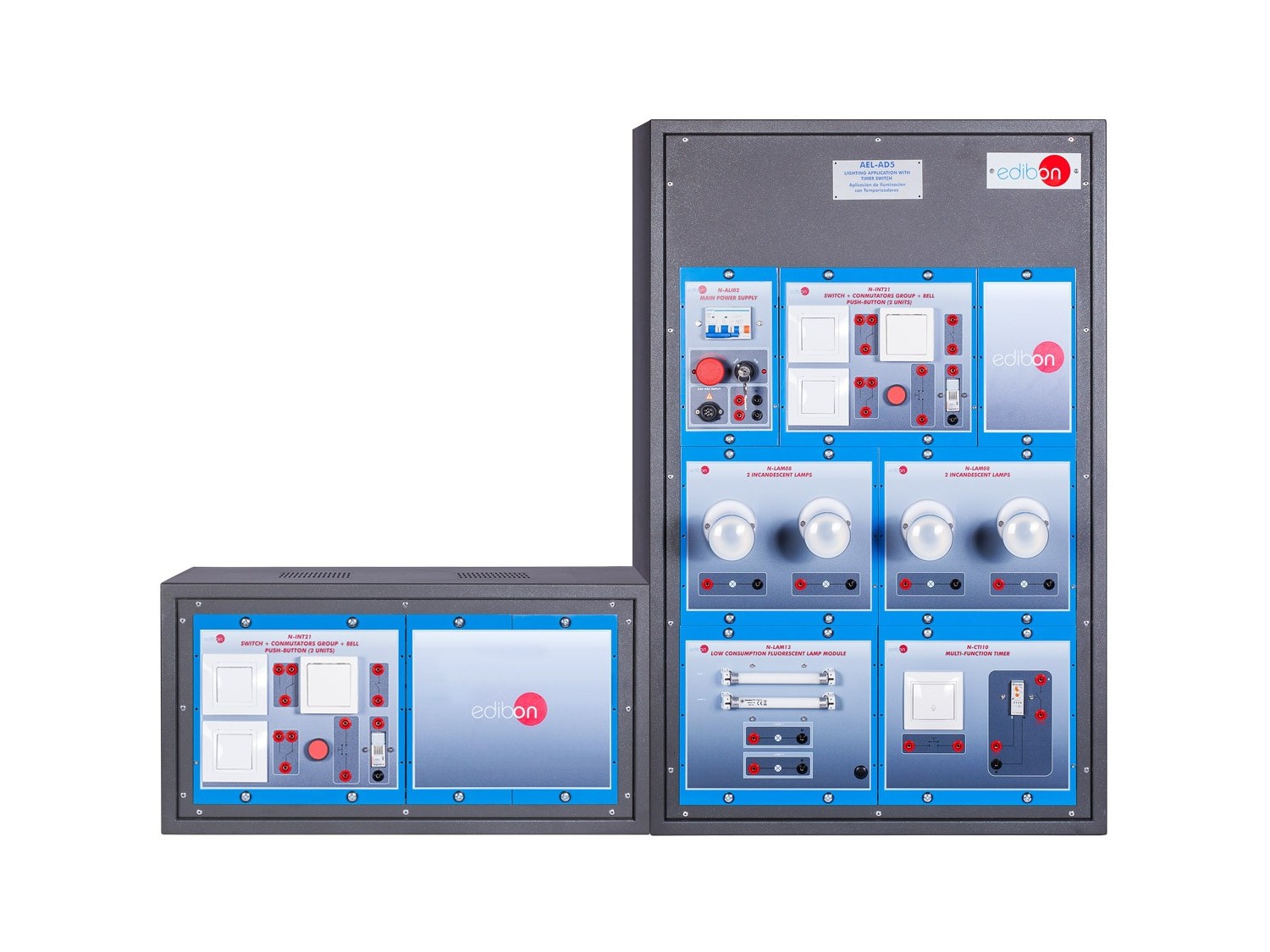

The Lighting Application with Timer Switch, “AEL-AD5”, has been designed by EDIBON to show the working of timer switches and other lighting switches.
This application is formed by the following modules: a timed switch, a module with a switch, commutators group and a bell push-button, two modules with two incandescent lamps each one and a low consumption fluorescent module. Thanks to this application, the student can learn the working of timed switches applied to lighting, and simulate different situations to apply the automatic timed lighting and learn the wiring of these kinds of installations.
