SPECIFICATIONS
The “AEL-AD6A” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH+N.
ON/OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push button.
• N-INT18. Two-Way Single-Pole Switch Module.
Nominal voltage: 230 VAC (PH+N).
Two switches ON/OFF.
Two Normally Open contacts (NO).
• N-COM14. Two Commutators Module.
Nominal voltage: 230 VAC (PH+N).
Two commutators.
Contacts:
Two Normally Open contact (NO).
Two Normally Close contact (NC).
Common point of normally close/open contacts.
• N-REG06. Voltage Electronic Regulator (Switch) Module 40 to 300 W / 230 VAC.
It works with incandescent lamps and with halogens, but not with fluorescents.
Nominal voltage: 230 VAC (PH+N).
Two terminals:
Red (L).
Green.
Potentiometer.
ON/OFF switch (pressing).
Maximum turn: 270º (regulate the voltage level).
• N-LAM08. Two Lamp-holders + Incandescent Lamps Module.
Nominal voltage: 230 VAC (PH+N).
Two bulbs:
40 W each one.
Two terminals each one.
• N-LAM09. Fluorescent Lamp Module.
Nominal voltage: 230 VAC (PH+N).
Switch ON/OFF.
Fluorescent lamp.
Nominal power: 4 W.
Supply terminals (LN).
• N-LAM10. Two Halogen Lamps Module.
Two halogen lamps:
Nominal voltage: 12 VAC.
20 W each one.
Terminals:
Two terminals (PH+N) each lamp.
Nominal voltage: 230 VAC.
• N-SEN26. Presence and Movement Sensor (Wall) Module.
Supply voltage: 230 VAC (PH+N).
Output terminal: Green terminal. It supplies when the motion sensor detects any movement.
Three knobs to be configured:
Meter: to set the detection distance up to about 8 M.
Time: to set the ON time from about 6 seconds to a 12 minutes maximum. This period starts after body
movement within detection area is sensed.
Lux: to set the light level required for operation to start at the required light level.
• All necessary cables to realize the practical exercises are included.
Cables and Accessories, for normal operation.

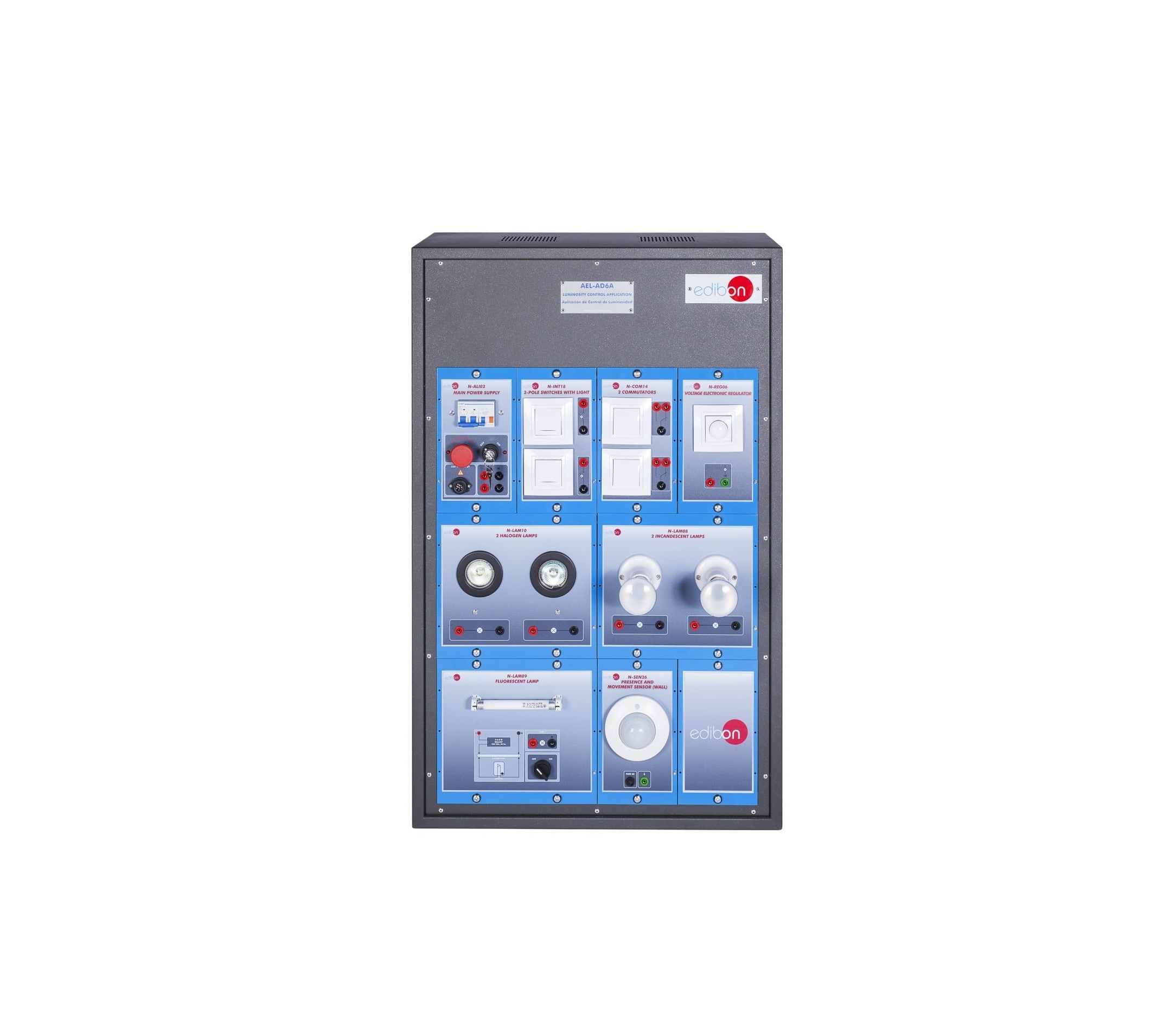

AEL-AD6A | LUMINOSITY CONTROL APPLICATION
The Luminosity Control Application, “AEL-AD6A” has been designed by EDIBON to study how a luminosity control application works.
This unit consists of different modules such as switches with lights, fluorescent lamps, halogen lamps, presence and movement sensor, etc. These modules allow the students to acquire experience wiring of lighting automation circuits and circuit-switched.
This application has a motion sensor that can be connected to the lighting circuit to realize different automations. Besides, through this unit, the student can study different cabling made in these installations.
