SPECIFICATIONS
The “AEL-AD6B” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH+N.
ON/OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push button.
• N-INT18. Two-Way Single-Pole Switch Module.
Nominal voltage: 230 VAC (PH+N).
Two switches ON/OFF.
Two Normally Open contacts (NO).
• N-COM14. Two Commutators Module.
Nominal voltage: 230 VAC (PH+N).
Two commutators.
Contacts:
Two Normally Open contact (NO).
Two Normally Close contact (NC).
Common point of normally close/open contacts.
• N-REG06. Voltage Electronic Regulator (Switch) Module 40 to 300 W / 230 VAC.
It works with incandescent lamps and with halogens, but not with fluorescents.
Nominal voltage: 230 VAC (PH+N).
Two terminals:
Red (L).
Green.
Potentiometer.
ON/OFF switch (pressing).
Maximum turn: 270º (regulate the voltage level).
• N-LAM08. Two Lamp-holders + Incandescent Lamps Module.
Nominal voltage: 230 VAC (PH+N).
Two bulbs:
40 W each one.
Two terminals each one.
• N-LAM10. Two Halogen Lamps Module.
Two halogen lamps:
Nominal voltage: 12 VAC.
20 W each one.
Terminals:
Two terminals (PH+N) each lamp.
Nominal voltage: 230 VAC.
• All necessary cables to realize the practical exercises are included.
Cables and Accessories, for normal operation

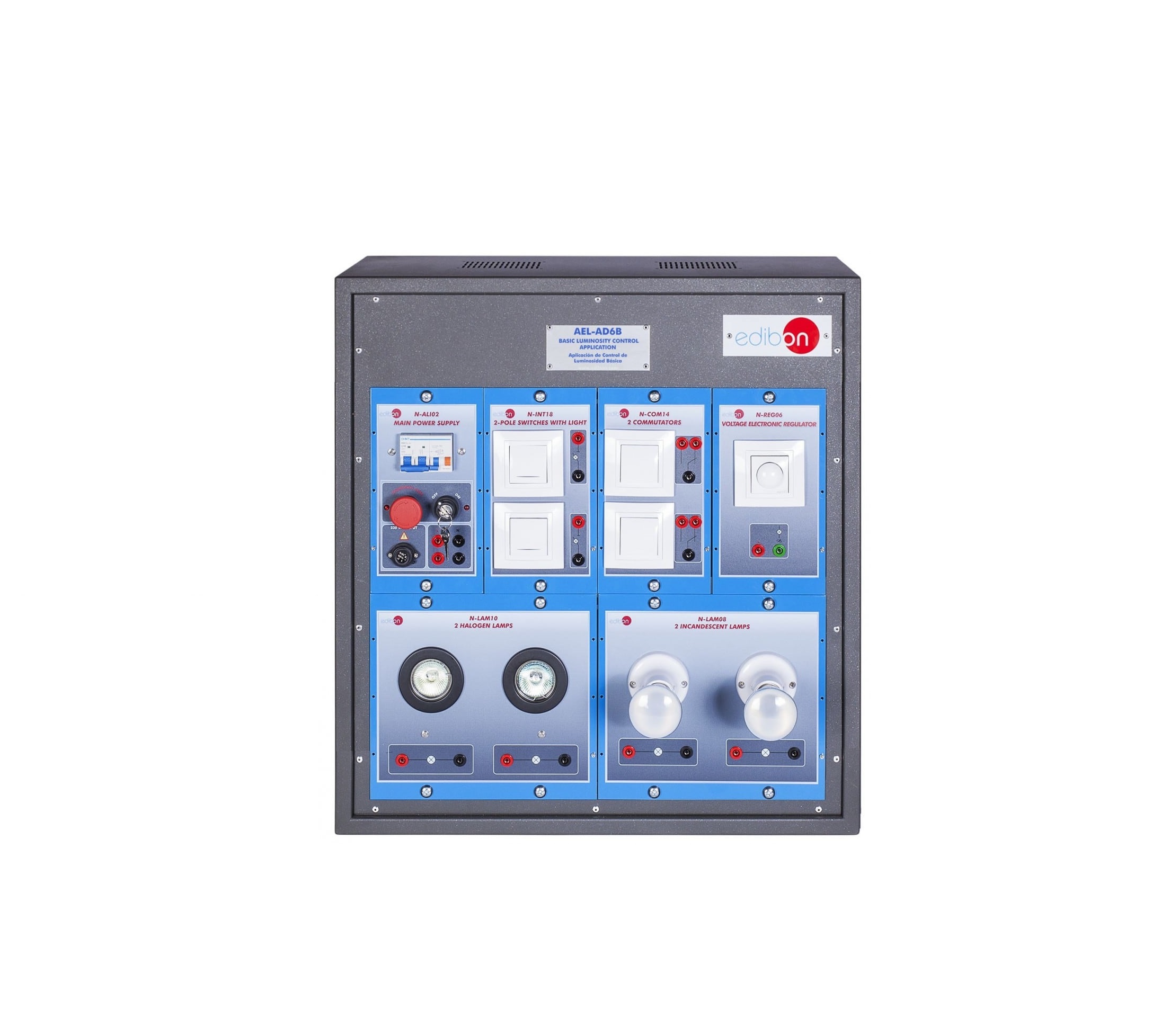

AEL-AD6B | BASIC LUMINOSITY CONTROL APPLICATION
The Basic Luminosity Control Application, “AEL-AD6B”, has been designed by EDIBON to study how a luminosity control application works. This unit is composed by several modules in order to carry out practices related to switching circuits to control different lamps.
Through this application, the student can understand different cabling made in the lightning systems.
