SPECIFICATIONS
The application “AEL-AD9A” includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH+N.
ON/OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push button.
• N-TIM01. Bell 70 dB Module (2 units).
Nominal voltage: 230 VAC.
Frequency: 50 Hz.
Sound pressure level: 70 dB.
• N-SEL09. Double Luminous Signalling red/green 230 VAC Module (2 units).
Nominal voltage: 230 VAC.
Red and green luminous warning.
Power of luminous warning: 5 W.
Terminals:
Two single-phase terminals (PH+N) to connect the electrical warning.
• N-MED76. Thermostat for Heating Module.
Supply voltage: 230 VAC (PH+N).
Nominal current: 10 A.
Wheel to change the temperature:
Regulation: 5 ºC – 30 ºC.
Accuracy: 0.25 ºC.
Contacts:
One Normally Close Contact (NC).
• N-MED77. Thermostat for Heating and Refrigeration Module.
Supply voltage: 230 VAC (PH+N).
Nominal current: 10 A.
Wheel to change the temperature:
Regulation: 5 ºC – 30 ºC.
Accuracy: 0.25 ºC.
Contacts:
One Normally Open contact (NO).
One Normally Close contact (NC).
Common point of normally close/open contacts.
• All necessary cables to realize the practical exercises are included.
Cables and Accessories, for normal operation.

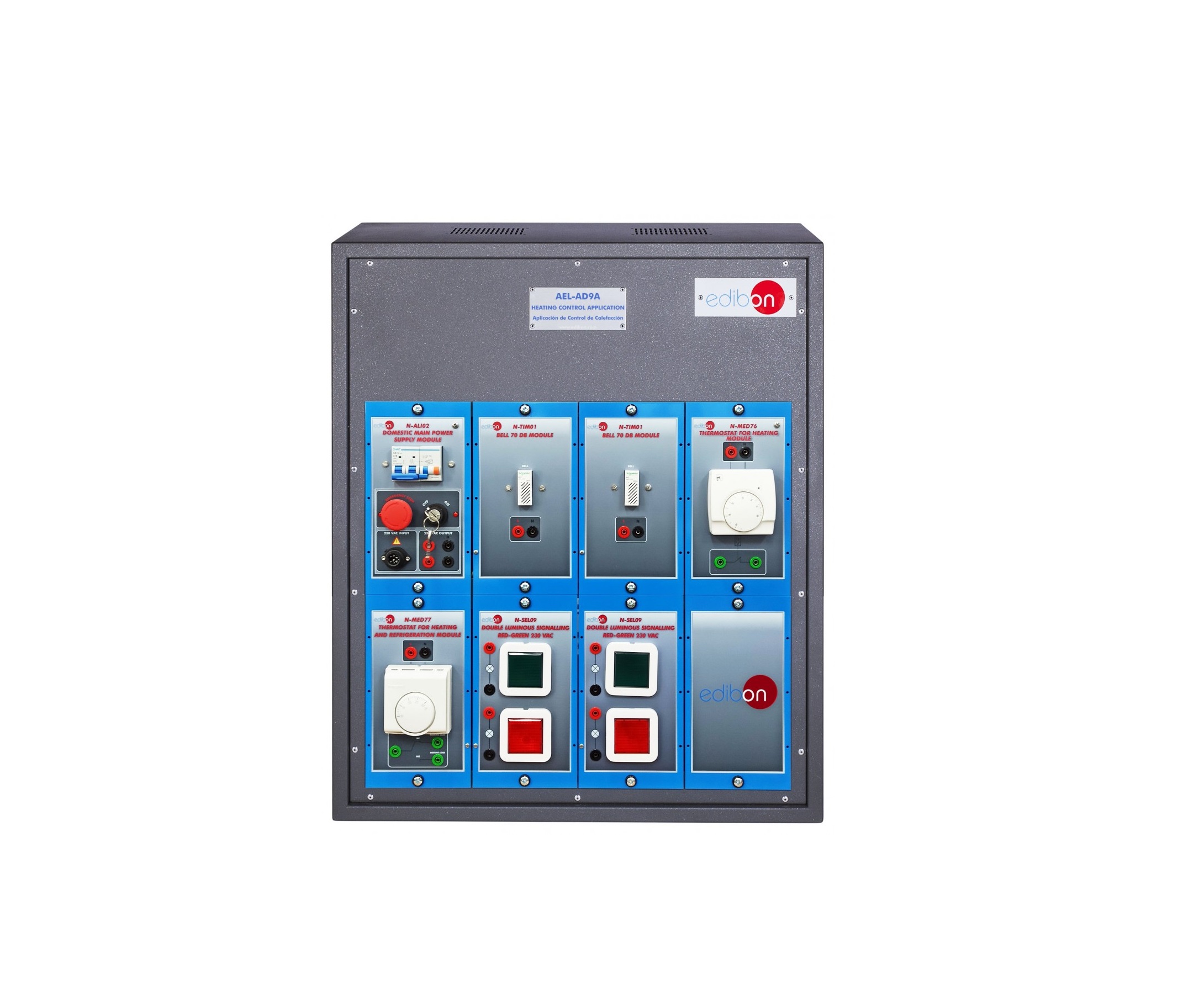

AEL-AD9A | HEATING CONTROL APPLICATION
The Heating Control Application, “AEL-AD9A”, has been designed by Edibon to study how a heating control application works.
This application allows the students understand the control logic of a thermostat and it offers the possibility of work with a heating thermostat and with a thermostat for heating or refrigeration.
The AEL-AD9A includes lamps and bells in order to simulate the behavior of an air conditioning system.
