SPECIFICATIONS
The “AEL-AE4” application includes the following elements:
• N-ALI02. Domestic Main Power Supply Module.
Supply voltage (single-phase): 230 VAC, 1PH+N.
ON/OFF removable key.
Output voltage connections:
Two single-phase: 230 VAC.
Single-phase supply hose connecting plug.
Differential magnetothermal 2 poles, 25 A, 30 mA AC 6 KA.
Emergency stop push button.
• N-TRANS01. Single-phase Galvanic Isolation Transformer 230/230 VAC, 500 VA, Module.
Nominal power: 500 VA.
Input voltage: 230 VAC.
Output voltage: 230 VAC.
Earth-neutral connection switch.
2 A fuses.
ON/OFF switch.
• N-DIF. Differential Protection (RCD) Module.
Differential protection.
Input terminals: 230 VAC.
Output terminals: 230 VAC.
Sensitivity: 30 mA.
• MED65. Digital Multimeter.
This module has a digital multimeter of about 3 ½ digits, with double-jack ending cables of about 4 mm
to facilitate interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
Resistance.
Capacitors capacity.
Temperature.
• N-FAULT. Fault Injection Module with Human Body Impedance Selector Module.
Fault injection push-button.
Human impedance selector: 1 Ω, 2 Ω, 20 Ω, 200 Ω.
Input connections (a, b).
• N-MEDV. Analog Voltmeter Module.
Voltage measurement range: 0 – 100 VAC.
Two voltage terminals.
• N-MEDI. Analog Ammeter Module.
Current measurement range: 0 – 60 mA.
Two current terminals.
• N-TSTF. Leakage to Ground Tester Module.
Module for earth fault tests.
2 A fuse holder.
Potentiometer for varying the impedance to ground.
Connections for differential protection.
Switch for activating the fault derivation.
Connection terminals for:
Single-phase transformer: 230 VAC.
Earth transformer for current deviation measurement.

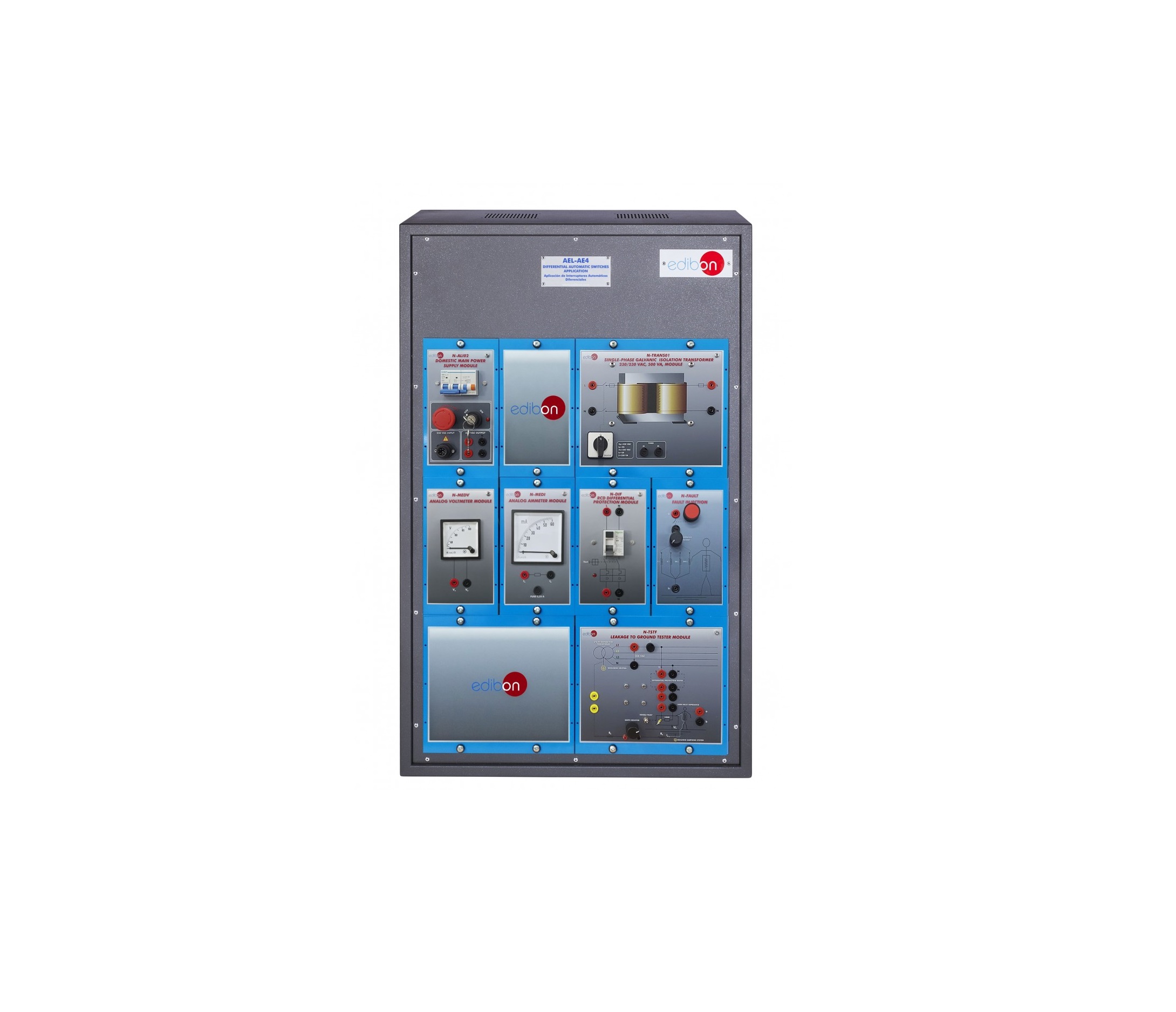

AEL-AE4 | DIFFERENTIAL AUTOMATIC SWITCHES APPLICATION
The Differential Automatic Switches Application, “AEL-AE4”, has been designed by EDIBON to demonstrate how a differential protection switch works when an earth leakage occurs.
This application includes all necessary elements to understand the behavior of a differential protection switch. In order to test the differential protection this application includes a series of modules that allow to trigger an earth leakage with aid of a variable resistor load. Thus, it will be possible to measure the trip current threshold of the differential switch.
This application includes modules such us analog voltmeter and ammeter to measure fault currents and voltages, tester protection module, fault injection module, etc.
