SPECIFICATIONS
The Application includes the following modules:
• N-ALI02. Domestic Main Power Supply.
Supply voltage (Single-Phase): 230 VAC, PH+N+G.
ON-OFF removable key.
Output Voltage Connections:
Two Single-Phase: 230 VAC.
Single-Phase supply wire connecting plug.
Differential magnetothermal, 2 poles, 25A, 30 mA AC 6 KA.
• N-DAC. DALI Controller Module.
DALI input controller.
4 independent inputs for floating contacts.
For connecting standard momentary-action switch or switches.
Adjustable operating mode and range via rotary selector.
Power supply via DALI line: 24 VDC.
• N-LED1. LED Lamps Module.
Power supply: 230 VAC.
Typ. luminous flux category: 1,000 / 2,000 lm.
High system efficacy up to 90 lm/W at tp = 65 °C.
• N-MSE1. DALI Motion sensor Module.
Component of the comfortDIM system (DALI standalone).
With ambient light dependent control and presence detection.
Simple group assignment via rotary switch.
Multiple MSensors possible in a group.
Lighting control and presence detection can be deactivated.
Individual adjustment of the parameters with configuration software.
Power supply via DALI line: 24VDC.
• N-PUS1. DALI Push-buttons Module.
2 x Push buttons.
• N-SFU1. Staircase Module.
Relay contact: 16 A.
Timer 0 – 17 min.
• N-LAM10. Two Halogen Lamps.
Nominal voltage: 230 VAC.
Nominal Power: 2x40W.
Additional and recommended modules:
• N-MED60. Network Analyzer.
ON-OFF switch.
Supply voltage: 230 VAC.
Input terminals: Input connection with the measurement point.
Output terminals: Output connection with the measurement point.
Digital outputs: Three digital outputs are used for pulses or alarms, or for combining both.
Fuses: 3×10 A.
Network Analyzer Display. It shows:
Active, reactive and apparent power.
Active, reactive and apparent energies.
Lines and phase currents.
Line and phase voltages.
Frequencies.
Power Factor.
• N-TCP1. DALI Touch Control Panel Module.
Control panels for DALI systems.
For controlling multiple luminaire groups and calling up preset lighting scenes.
Power supply via DALI line: 24 VDC.
Individual adjustment of the control panel and button assignments with configuration software.
Setting group addresses or “broadcast”.
Setting scenes.
• N-DKG. DALI-KNX Gateway.
Power supply: 230 VAC.
DC BUS: 24 VDC.
• All necessary cables to realize the practical exercises are included.
Cables and accessories, for normal operation.
AEL-DALI | DALI INSTALLATIONS APPLICATION

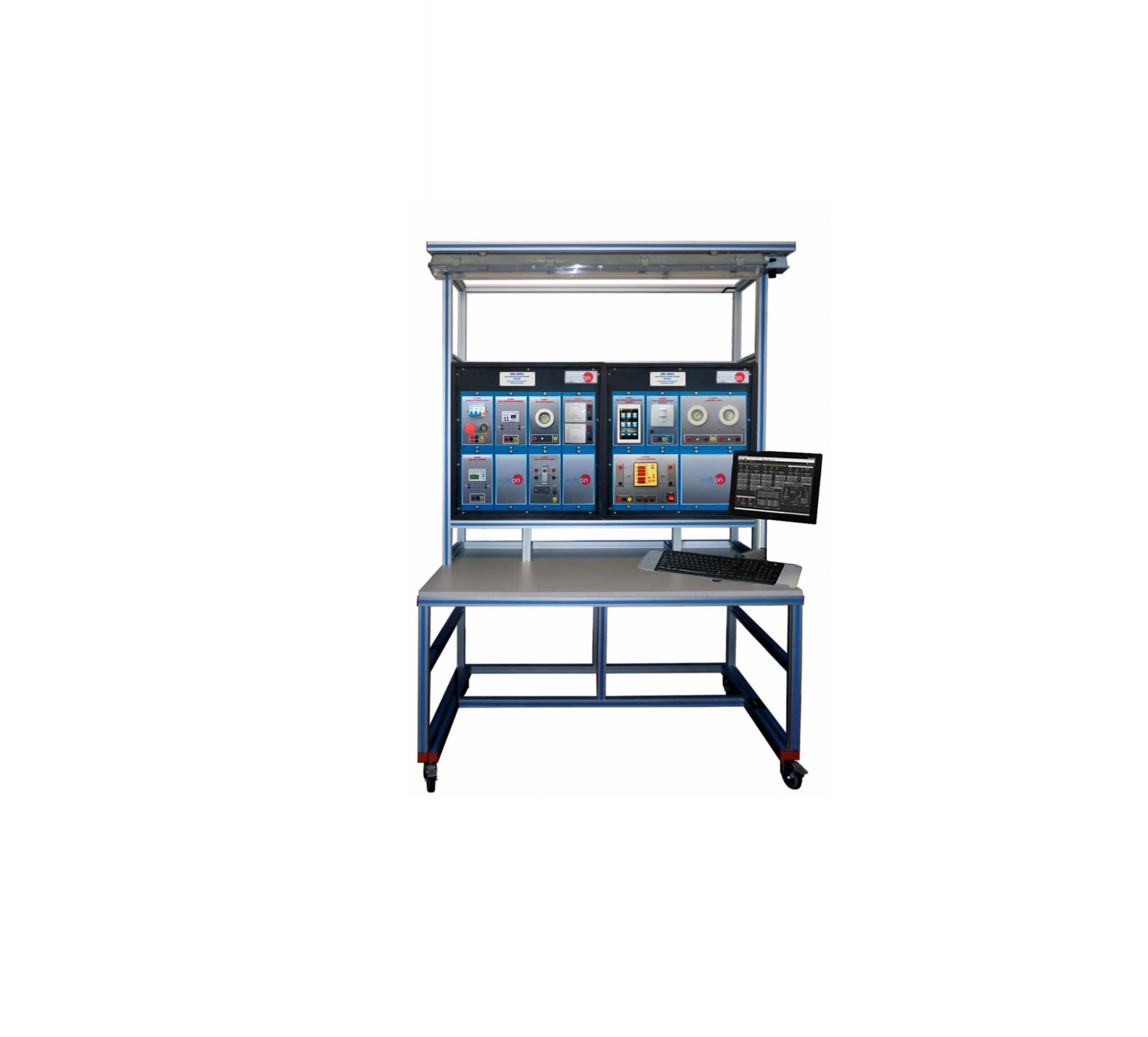

The DALI Installations Application, “AEL-DALI”, is designed by Edibon to study the most important subjects related to DALI technology, giving special hands-on training on this field.
The AEL-DALI consists of different modules to study the functionality of the most important components in the field of the DALI control systems. These components are, for example the DALI controller, external buttons, DALI-Controlled brightness and motion sensor. With this modules can be studied energy saving schedules, energy efficiency, lighting automation, on-off functions and discharge lamps using DALI control. In addition to these modules, a network analyzer is optionally provided to study energy savings by comparing DALI technology with conventional lighting installations.
The DALI controller module can be programmed by the user to get the following functions: automatic and semi-automatic motion sensing, regulation of constant light output, scene setting, push-button function, on-off function, staircase function (timer function), addressing capabilities.
The DALI Installations Application provides simplified wiring and high level control (flexibility) for an easy and hands-on learning.
