SPECIFICATIONS
The “AEL-SPTT” application includes the following elements:
• N-VPS01. AC 3PH Variable Power Supply Module.
ON/OFF removable key.
Supply voltage: 3 x 400 VAC + N + GND.
Emergency stop push button.
Three-phase supply hose with IP44 3PN + E 32 A 400 V connecting plug.
Differential magnetothermal 4 poles, 25 A, 30 mA AC 6 KA.
Fuses: 3 x 6 A.
Motorized variable autotransformer:
Nominal power: 3000 VA.
Input voltage: 400 VAC.
Fixed output voltage: 3 x 400 VAC+N.
Variable output voltage:
0 – 450 VAC (3PH + N).
0 – 240 VDC.
Nominal current: 2 A.
3-position switch with automatic return:
Position I: Voltage reduction.
Position 0: Constant voltage.
Position II: Voltage increase.
DC ammeter: 0 – 5 A.
AC ammeter: 0 – 5 A.
DC voltmeter: 0 – 300 V.
AC voltmeter: 0 – 500 V.
Autotransformer.
Nominal power: 3000 VA.
• N-MED22. AC Voltmeter Module (0 – 400 V).
Measurement range: 0 – 400 VAC.
Terminals:
Measurement terminals.
• N-MED32. Single-Phase Wattmeter Module (350 – 0 – 350 W, 230 VAC, 1.5 A).
Nominal voltage: 230 VAC.
Terminals:
Measurement terminals.
GND terminal.
• MED65. Digital Multimeter.
This module has a digital multimeter of 3 ½ digits, with double-jack ending cables of 4 mm to facilitate
interconnections.
With this digital multimeter we will be able to measure:
Voltage.
Current.
Resistance.
Capacitors capacity.
Temperature.
• TRA31. 1kVA Single-Phase Transformer.
Nominal supply voltage: 230 VAC.
Nominal output voltage: 230 VAC.
Nominal power: 1kVA.
• N-REV01. Single-Phase Variable Resistor Module 0 – 700 Ohm.
0 – 700 Ohm variable resistor.
Maximum power: 500 W.
Potentiometer.
Terminals:
Three terminals for taking the maximum resistance or a variable value.
• N-CON. Variable Load Capacitance with Switch Module.
Capacitance: 7 µF.
Nominal voltage: 230 VAC.
Switch:
Position 0: Circuit opened.
Position 1: Circuit closed.
• N-IND. Single-Phase Inductance Module.
Inductance: 1.4 H.
Switch:
Position 0: Circuit opened.
Position 1: Circuit closed.
Fuse: 2 A.
GND terminal.
• N-MED09. AC Ammeter Module (0 – 2.5 A) (2 units).
Measurement range: 0 – 2.5 A.
Terminals:
Measurement terminals.
GND terminal.
Additional recommended elements (Not included):
• EM-SCADA. Control and Data Acquisition System Software for Electrical Machines.
Power supply: 230 VAC.
Input signals:
Current signal (x2).
RMS current signal (x2).
Voltage signal (x2).
RMS voltage signal (x2).
Torque and speed signals

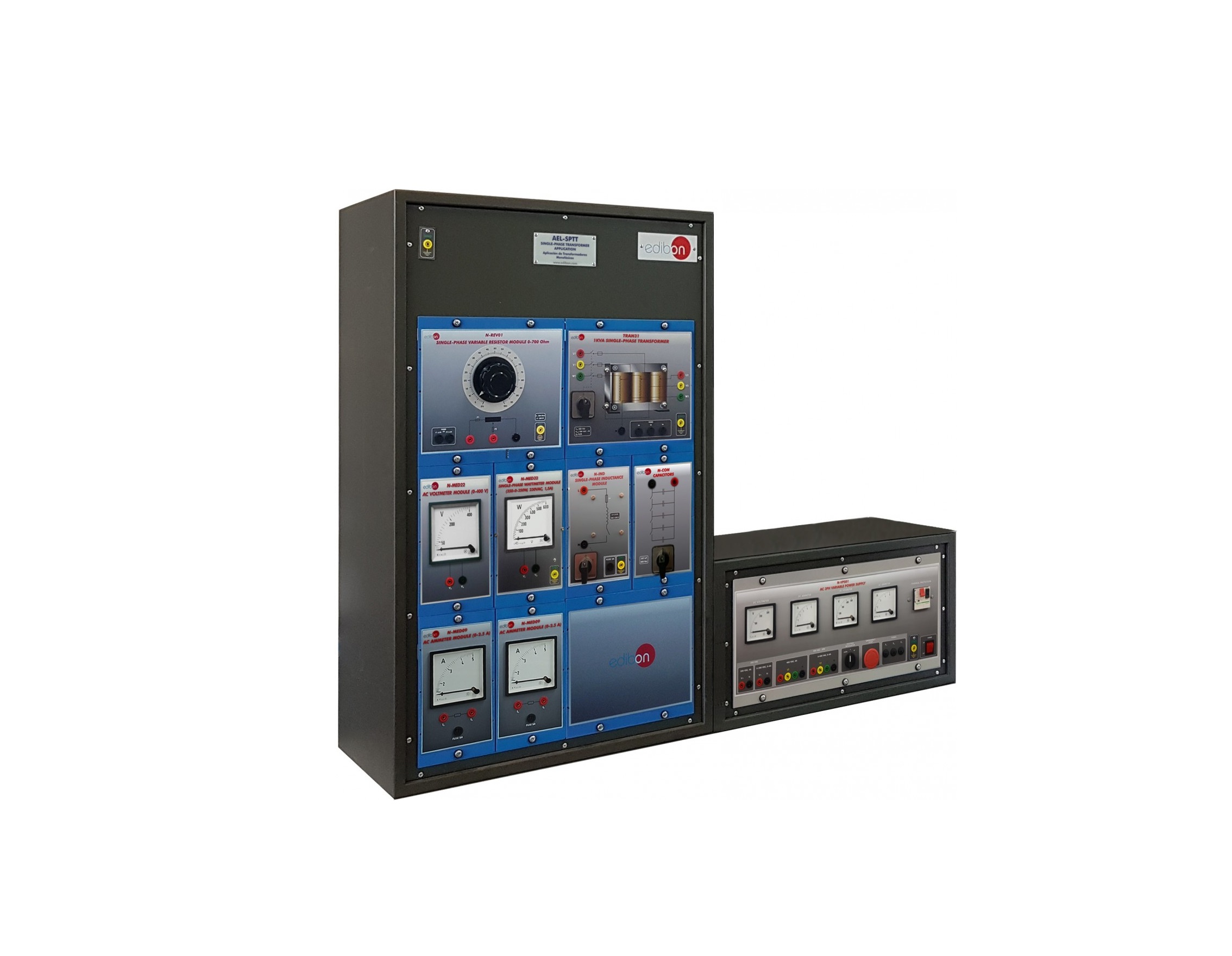

AEL-SPTT | SINGLE-PHASE TRANSFORMER APPLICATION
The AEL-SPTT Single-Phase Transformer Trainer has been designed by Edibon to allow the students to learn how realice different single-phase transformer test and how they work.
With this trainer, the user can realice the open circuit and short circuit test. Thus, the student will be able to determinate the equivalent circuit and obtain the losses of the machine. This trainer includes a series of resistive, inductive and capacitive loads to study different behavior of the transformer such as internal drop voltages, energy losses, etc. On this way the user will analyze the differences among resistive, inductive and capacitive loads. One important parameter to analyze is the efficiency of the transformer, which can be studied with this trainer.
The AEL-SPTT includes all necessary modules in order to realice all practical exercises described before, such as transformer, network analyzers, power supply and resistive, inductive and capacitive loads.
Optionally, this trainer can be acquired with the Control and Data Acquisition System of Electrical Machines, EM-SCADA. This system is designed to analyze and monitoring all voltajes, currents and performace curves of dinamyc and static electrical machines. After testing procedures, the user can obtaint result reports.
