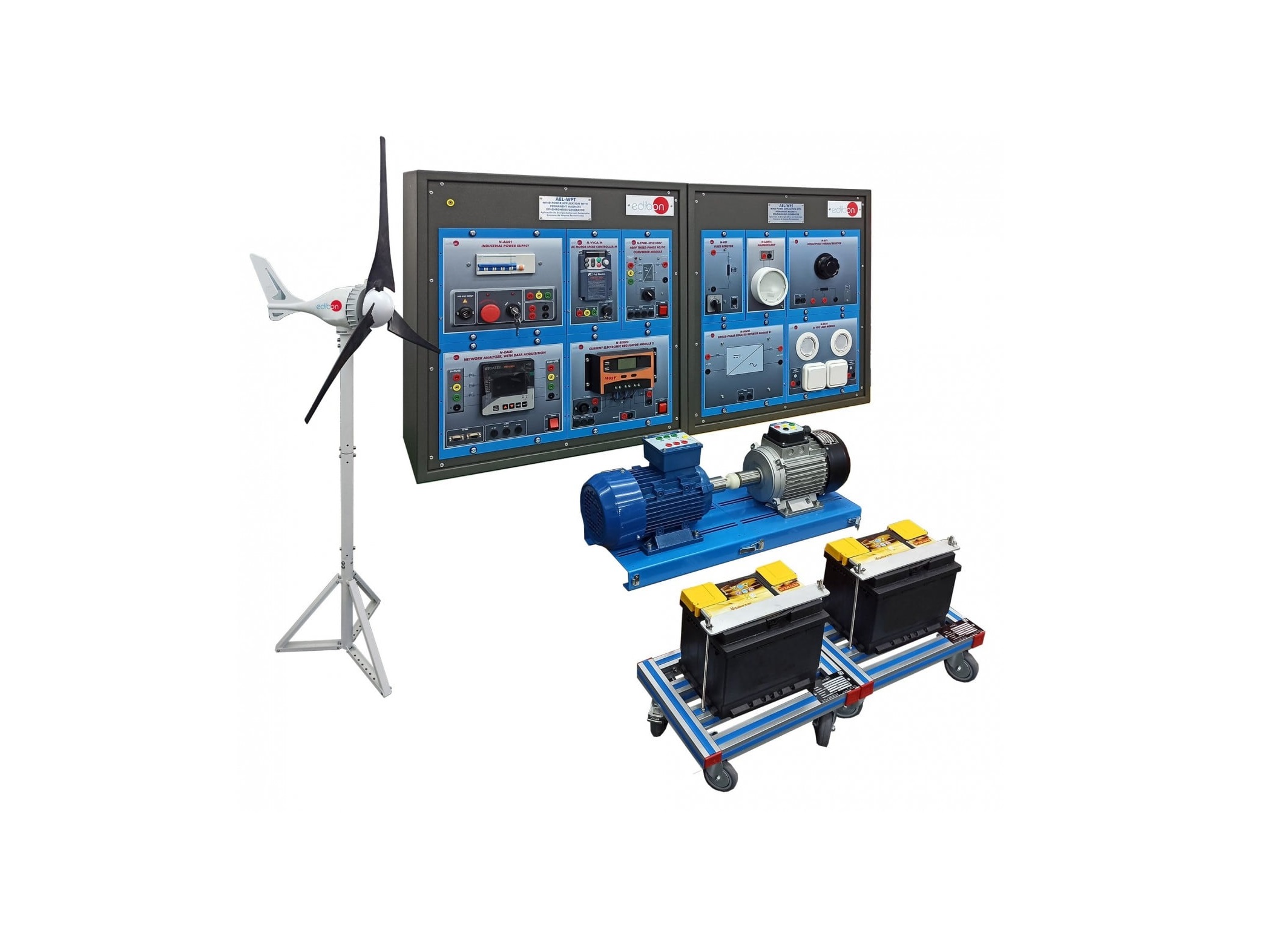

The Wind Power Application with Permanent Magnets Synchronous Generator, “AEL-WPT”, is an application designed by EDIBON to train the students in the main operations of wind turbines.
Using a driver motor that controls on AC Permanent Magnets Synchronous Generator, the student can simulate an actual medium wind turbine with a voltage regulator, AC inverter (not included) and batteries.
The application also includes a series of resistive loads in order to be able to carry out different energy consumption and study the behaviour of the different devices. For example, the regulator manages the energy from the wind turbine while the battery is being charged and provides energy to the load. The equipment also has an AC/DC rectifier to rectify the output current of the wind turbine and take it to the charge regulator, which allows the batteries to be charged and provides DC energy to the LED lamp module included in the application.
SPECIFICATION
The “AEL-WPT” application includes the following modules:
- N-ALI01. Industrial Main Power Supply Module.
- EMT6C. Permanent Magnets 3PH Synchronous Motor-Generator, 8 poles, 24 Vac.
- EMT7C. 3PH Squirrel-Cage Motor, 8 poles.
- N-VVCA/M. AC Motors Speed Controller (Intermediate option).
- N-REV01. Single-Phase Variable Resistor Module 0-700 Ohm.
- N-REF. Single Phase Fixed Resistor.
- N-TPAD-3PH/400V. 400V Three-Phase AC/DC Converter Module.
- BAT6. Lead-Acid Battery 6. (2 units).
- MED65. Digital Multimeter (2 units).
- N-LAM31. 2 LED Lamps Module with Commutators, 24 VDC.
- N-REG02. Current Electronic Regulator Module 2.
