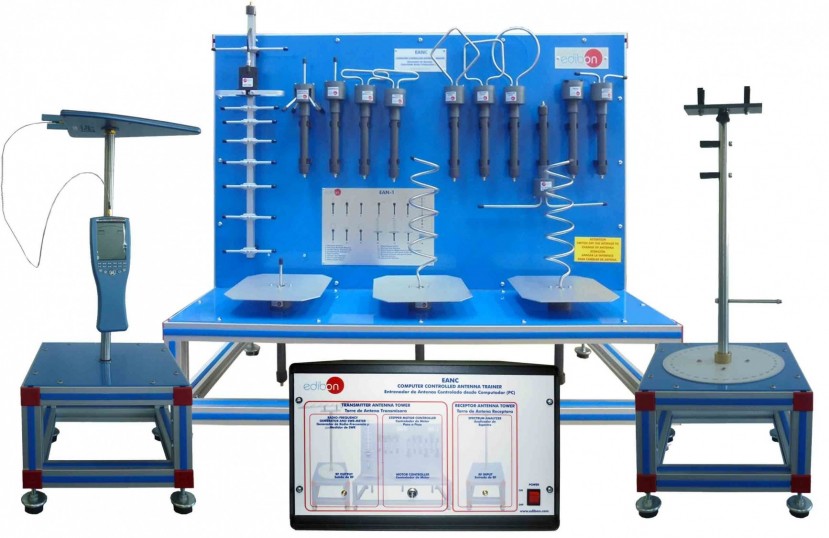

The Computer Controlled Antenna Unit, “EANC”, is an advanced system that operates in conjunction with a computer (PC), which allows the control and data acquisition of the antenna measurement by means the SCADA System (control interface box + control software).
The “EANC” performs the full-automatic 360° rotation of the transmitter antenna tower, controlled by the software, for draw the antennaradiation pattern and display it in the computer (PC) window.
The “EANC” also allows the full automatic frequency sweep in order to perform the bandwidth analysis of an antenna.
SPECIFICATION
RF-Generator and SWR-Meter:
- RF-Generator:
Based on voltage controlled oscillator (VCO).
Wide range of generated frequencies: from 600 MHz to 1700 MHz.
Frequency tuning through the computer.
Frequency displayed on the computer. 50 Ω of nominal impedance
- SWR-Meter:
Frequency range: 600 MHz to 2.5GHz.
Insertion loss ≥ 0.1dB.
SWR measurement displayed on the computer.
50 Ω of nominal impedance.
SMA connector to transmitter antenna
Stepper Motor Controller:
This controller allows the full-automatic 360° rotation of the transmitter antenna.
Spectrum Analyzer:
Frequency range: 50 MHz to 6 GHz.
Typically level range: -40 dBm to +23 dBm. Accuracy of +/- 0.18 dB at measurement lower than +18 dBm.
Standing wave ratio lower than 1.2:1.
Gain and offset self-calibration. 50 Ω of nominal impedance.
SMA connector to receiver antenna.
Frequency and power signal measurement from the computer (PC).
Two Towers of Antennas:
Receiver Antenna Tower.
Transmitter Antenna Tower. The base of this tower has a computer controlled stepper motor. The base of this tower also has a degree wheel.
