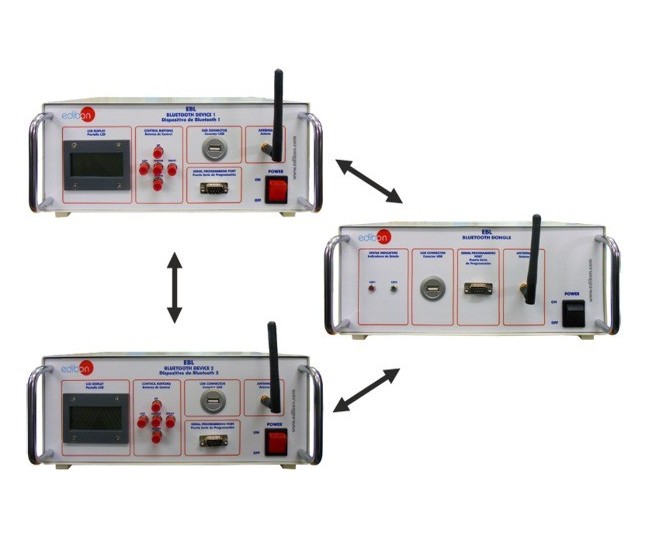

The Bluetooth Unit, “EBL”, operates in conjunction with a computer, which is connected with the Bluetooth Dongle, that allows communicating and programming the Bluetooth Devices to perform a simple Bluetooth network.
This Computer Controlled Unit is supplied with the EDIBON Computer Control System (SCADA), and includes: The unit itself + a Control Interface Box + a Data Acquisition Board + Computer Control, Data Acquisition and Data Management Software Packages, for controlling the process and all parameters involved in the process.
SPECIFICATION
Bluetooth Device 1 and 2:
- Large LCD Display.
- Control Buttons: Five push buttons.
- USB connector to PC.
- Serial port connector to the Bluetooth Dongle.
- Bluetooth Power class 2: Communication range up to 10 meters.
- Low power transmitter: +4 dBm.
- High sensibility receiver: -87 to -93 dBm.
- External Bluetooth antenna:
Omnidirectional antenna (1/2 wavelength dipole antenna).
Antenna Centre Frequency: 2.45GHz.
Gain: 2 dBi.
Bluetooth Dongle:
- 2 Status LEDs.
- USB connector to PC.
- Serial port connector to Bluetooth device interface.
- Bluetooth Power class 2: Communication range up to 10 meters.
- Low power transmitter: +4 dBm.
- High sensibility receiver: -87 to -93 dBm.
- Programmable as master device or Bluetooth packet sniffer through the serial cable.
- External Bluetooth antenna:
Omnidirectional antenna (1/2 wavelength dipole antenna).
Antenna Centre Frequency: 2.45GHz.
Gain: 2.20 dBi.
