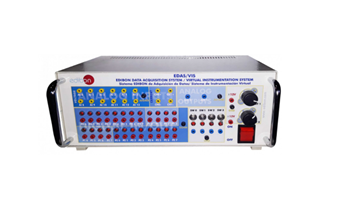

The EDIBON Data Acquisition System and Virtual Instrumentation, “EDAS/VIS”, designed by EDIBON, is an acquisition and control system suitable for EDIBON electronics and communications units that do not have supervision, control and data acquisition by themselves.
With in the “EDAS/VIS” reference we must differentiate between two possible versions available:
- The EDIBON Data Acquisition System and Virtual Instrumentation (speed: 250,000 samples/s), “EDAS/VIS-0.25”. With this system we will achieve a sampling capacity of 250,000 samples/second.
- The EDIBON Data Acquisition System and Virtual Instrumentation (speed: 1,250,000 samples/s), “EDAS/VIS-1.25”. With this system we will achieve a sampling capacity of 1,250,000 samples/second.
Both systems are composed of analog inputs, analog outputs, digital inputs/outputs, potentiometers and switches, allowing together with the software to perform the following functions:
- Oscilloscope.
- Function generator.
- Spectrum analyzer.
- Multimeter.
- Transient analyzer.
- Logic generator.
SPECIFICATIONS
16 Analog inputs (1 block with 12 voltage channels and 1 block with 2 current channels
(4 connections)).
EDAS/VIS 0.25, sampling velocity 250,000 samples per second.
EDAS/VIS 1.25, sampling velocity 1,250,000 samples per second.
Two analog outputs.
24 digital inputs/outputs, configurable as inputs or outputs, with 24 state LED indicators.
These digital inputs/outputs are grouped in three ports of eight channels (P0, P1 and P3).
Four digital signal switches 0 – 5 V.
Two analog signal potentiometers 12 V.
Main ON/OFF switch.
Inside: internal power supply of 12 V and 5 V. Potentiometer
