The EDAS/VIS-WF system performs all the functions required to visualize the signals connected to the unit: acquisition, conditioning, processing and visualization in the virtual instruments.
The EDAS/VIS-WF trainer offers the possibility of a remote connection of the unit and the PC through WI-FI communication.

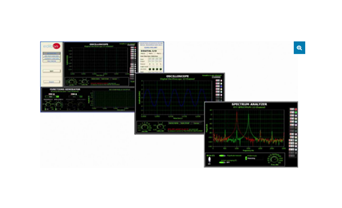

The EDAS/VIS-WF system includes a great variety of virtual instruments that offer the user a complete range of tools to analyze any type of signal. The virtual instruments included are: oscilloscope, spectrum analyzer, function generator, voltmeter, ammeter, etc.
SPECIFICATION
Metal box. Dimensions: 310 x 220 x 145 mm. approx.
Front panel:
- 6 analog inputs.
- 4 analog outputs.
- 24 digital inputs/outputs
- 4 digital signal switches 0-5V.
- 2 analog signal potentiometers ±12V.
Main ON/OFF switch.
Inside: internal power supply of 12 and 5 V. Potentiometer.
Back panel:
- Power supply connector.
- USB connector (to connect with the PC).
- Antenna for the WI-FI communication.
- Connection cables.
Compatible con los sistemas operativos Windows actuales.
Compatible with current Windows operating systems. User-friendly graphical environment.
Configurable software allowing the time/frequency representation of the inputs and outputs.
Visualization of the circuits voltage on the computer screen.
It allows data storage in a file. Screens and reports of the signals can be printed at any time.
Measurement, analysis, visualization, representation and report of results.
