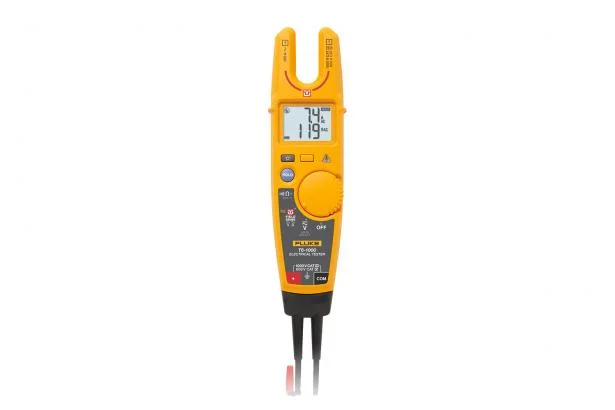

Electrical Testing Equipment T6-1000

Main features

Measurement specifications
Function	Measurement cable required	Measuring range	Resolution	Accuracy^[1]
FieldSense ac voltage True-rms	Not	1000 V	1 V	± (3 % + 3 counts) 45 Hz – 66 Hz^{[2] [3]}
FieldSense current ac True-rms	Not	200,0 A	0,1 A	± (3% + 3 counts) 45 Hz – 66 Hz
FieldSense frequency (Hz)	Not	45 Hz – 66 Hz	1 Hz	± (1% + 2 counts)^[3]
Volt ac True-rms	Have	1000 V	1 V	± (1.5% + 2 counts) 45 Hz – 66 Hz
Volt dc	Have	1000 V	1 V	± (1% + 2 counts)
Electrical resistance	Have	2000 Oh	1 Ω	± (1% + 2 counts)
	Have	20,00 kΩ	0,01 kΩ
	Have	100.0 kΩ	0,1 kΩ
Safe		1000 V CAT III 600 V CAT IV
Accuracy ^[1]: ± ( [ % of readings] + [number of least important digits] ). Accuracy is indicated for 1 year after calibration, at temperatures of 18 °C to 28 °C (64 °F to 82 °F) with a relative humidity of up to 90 %. AC measurement coupled ac current, RMS response Accuracy ^[2]: Plus 3 % without external grounding Requires users to wear insulating gloves, stand on an insulating ladder or isolate from the ground when working with external groundings. Accuracy ^[3]: FieldSense is specified from 16 V to 100 % range.
