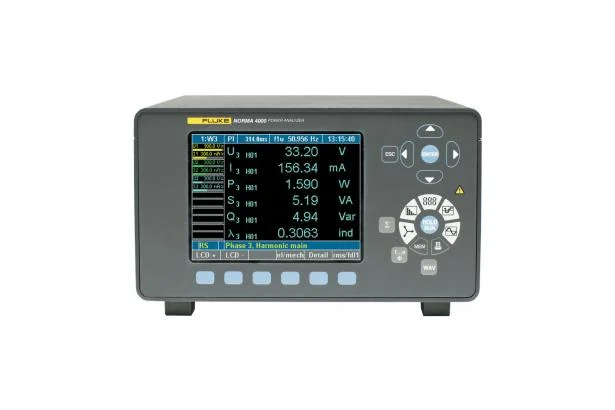

Fluke Norma 4000 Power Analyzers

Key features

Compact power analyzer to assist engineers with developing and testing motors, inverters, lighting, power supplies, transformers, and automotive components
Features a simple user interface to ensure easy, intuitive operation
Measures voltage, current, and power harmonics up to the 40th harmonic for complete analysis
Offers a variety of standard configurations so users can choose the exact functionality required for their unique application

General Specifications
Number of Phases	1 to 3
Weight	Approx. 5 kg (11 lb)
Size	150 x 237 x 315 mm
	5.9 x 9.3 x 12.4 in
On-board Printer	No
Display	Color, 5.7 in / 144 mm – 320 x 240 pixel
	User-selectable background lighting and contrast.
Bandwidth	DC to 3 MHz or DC to 10 MHz depending on input module
Basic Accuracy	0.2%, 0.1% or 0.03% depending on input modules
Sampling Rate	0.33 MHz or 1 MHz depending on input modules
Voltage Input Range	0.3 V to 1000 V
Current Input Range (direct, not via shunt)	0.03 mA to 20 A depending on input module
Memory for Configurations	4 MB
Memory for Settings	0.5 MB
Fast Fourier Transformation (FFT)	To the 40th harmonic
RS232/USB Interface	Standard
PI1 Process interface (8 analog/impulse inputs and 4 analog outputs)	Optional
IEEE 488.2/GPIB interface (1 MBit/s Ethernet / 10 MBit/s or 100 MBit/s)	Optional
Fluke NormaView PC software (for data download, analysis and report writing)	Standard
