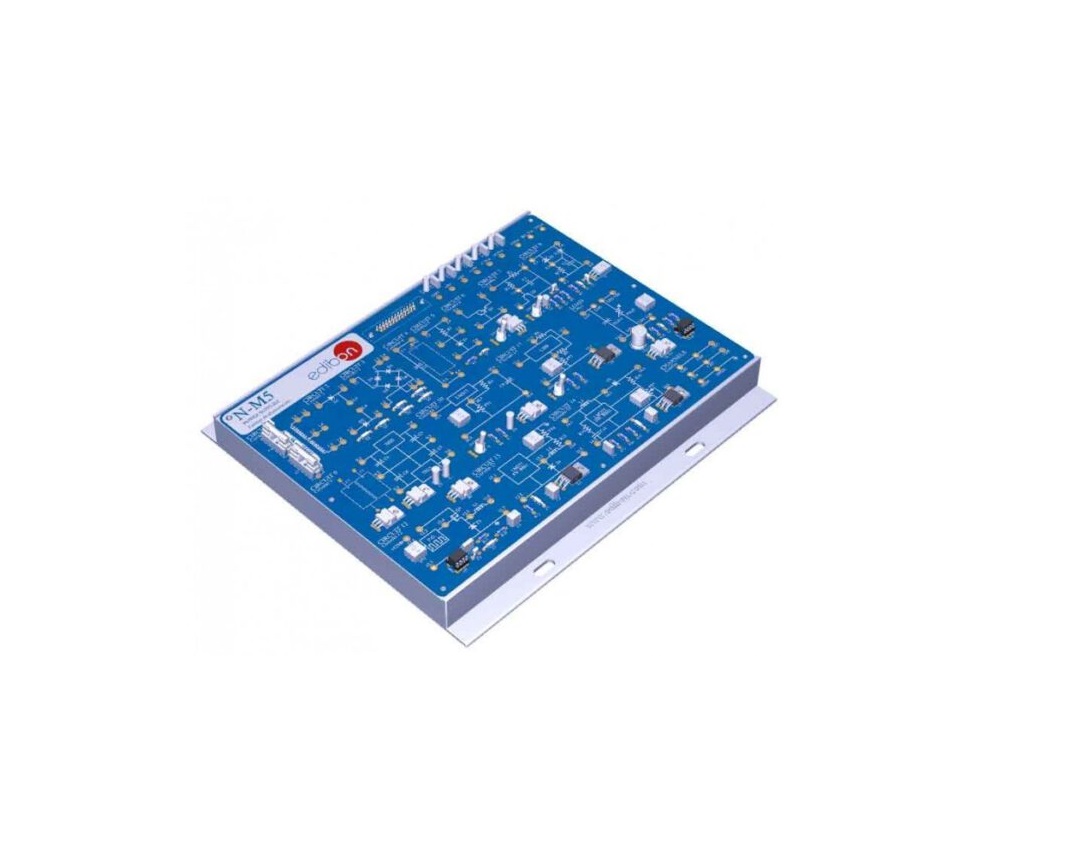

With the Power Supplies Module “N-M5”, designed by EDIBON, symmetrical voltage regulators, operation of fixed, symmetrical and switched-mode power supplies as well as rectification (conversion of an AC voltage to a DC voltage) can be studied.
In addition, faults can be simulated in most of the circuits under study. The student must investigate what is happening in the circuit and why it is not working properly. These faults simulations can be of several types from damage components to a hypothetical incorrect circuit assembly.
SPECIFICATIONS
Circuit blocks:
- Transformer. (Circuit#1).
- Half wave rectifier. Full wave rectifier, center tap.
- (Circuit#2).
- Full wave rectifier. (Circuit#3).
- Filtering. (Circuit#4).
- Zener limiting.(Circuit#5).
- Regulation. (Circuit#6).
- Overcurrent protection. (Circuit#7).
- Overvoltage protection. (Circuit#8).
- Voltage regulators. (Circuit#9).
- LM317 adjustable regulator. (Circuit#10).
- L200 adjustable regulator. (Circuit#11).
- Switched source. (Circuit#12).
- PWM switched source. (Circuit#13).
- Boost switched source. (Circuit#14).
- Load.
- Channels.
