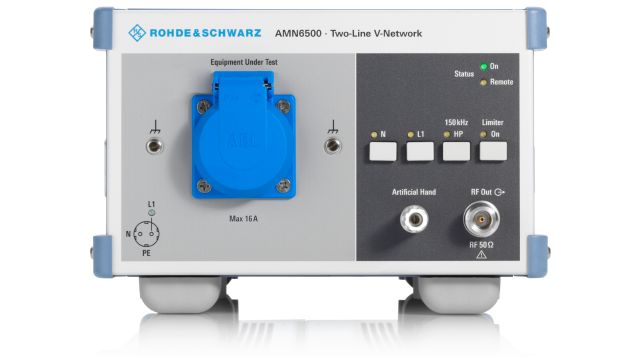

The R&S®AMN6500 two-line V-network has a simulated impedance of (50 μH + 5 Ω) || 50 Ω in the
frequency range from 9 kHz to 30 MHz. A socket with protective earth contacts is provided for connecting
the EUT. Rohde & Schwarz offers various R&S®AMN6500 models with country-specific connectors.
SPECIFICATION
- Frequency range from 9 kHz to 30 MHz
- Maximum continuous current: 16 A (country-specific)
- Simulated impedance: (50 μH + 5 Ω) || 50 Ω
- Measurements in line with CISPR, EN, VDE, ANSI,
FCC Part 15 and MIL-STD-461 standards - Voltage division factor: 10 dB calibrated, in line with
CISPR 16-1-2
