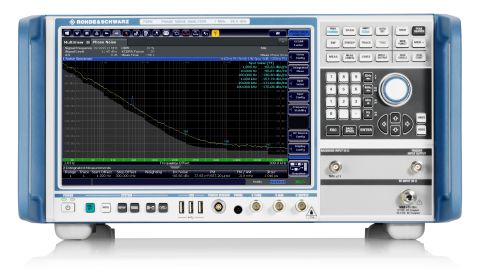

The R&S®FSPN phase noise analyzer and VCO tester is designed to provide both very high sensitivity and measurement speed for production and design engineers working in these fields characterizing sources such as synthesizers, VCOs, OCXOs, and DROs. It is the ideal instrument for demanding development and production phase noise and VCO analysis.
Equipped with two low phase noise synthesizers and a real-time cross correlation engine for increased measurement sensitivity, just a few correlations are needed to measure very high-quality oscillators, synthesizers or VCOs in production. Increase the number of correlations to characterize the most sensitive commercially available synthesizers and oscillators in R&D.
SPECIFICATION
- Pure phase noise analyzer and VCO tester with high measurement speed due to hardware-implemented real-time cross-correlation
- Very high sensitivity for phase noise measurements thanks to dual synthesizers and cross-correlation included in the base unit, typ. –163 dBc (1 Hz) at 1 GHz carrier frequency and 10 kHz offset
- Frequency range from 1 MHz to 26.5 GHz
- Extremely low‑noise internal DC sources for automatic VCO characterization
- Simultaneous measurement of phase noise and amplitude noise
