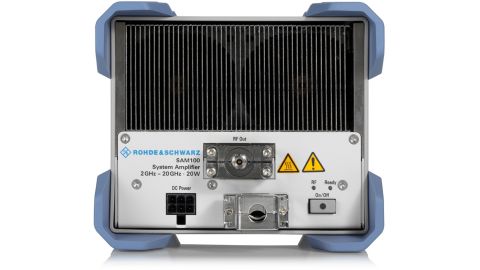

The R&S®SAM100 system amplifier is an ultra-broadband solid state microwave amplifier with a frequency range from 2 GHz to 20 GHz. With a power of up to 20 W, outstanding linearity and very good noise characteristics, the R&S®SAM100 amplifier is ideal as a compact system amplifier in various measurement setups e.g. design (DVT) and product validation test (PVT) or EMC. In measurement environments with R&S generators, frequency analyzers or network analyzers, they can act as drivers or boosters and amplify the measurement signals. The R&S®SAM100 is also an excellent alternative to tube amplifiers as well as for multi-band assemblies consisting of narrow-band single amplifiers.
SPECIFICATION
- Ultra-broadband frequency range: 2 GHz – 20 GHz
- Output power: 20 W Psat and higher
- High gain with low noise <8 dB and excellent linearity
- Very suitable for AM, FM, PM, PhiM, OFDM
- Compact, modular and robust for DVT / PVT and EMC
