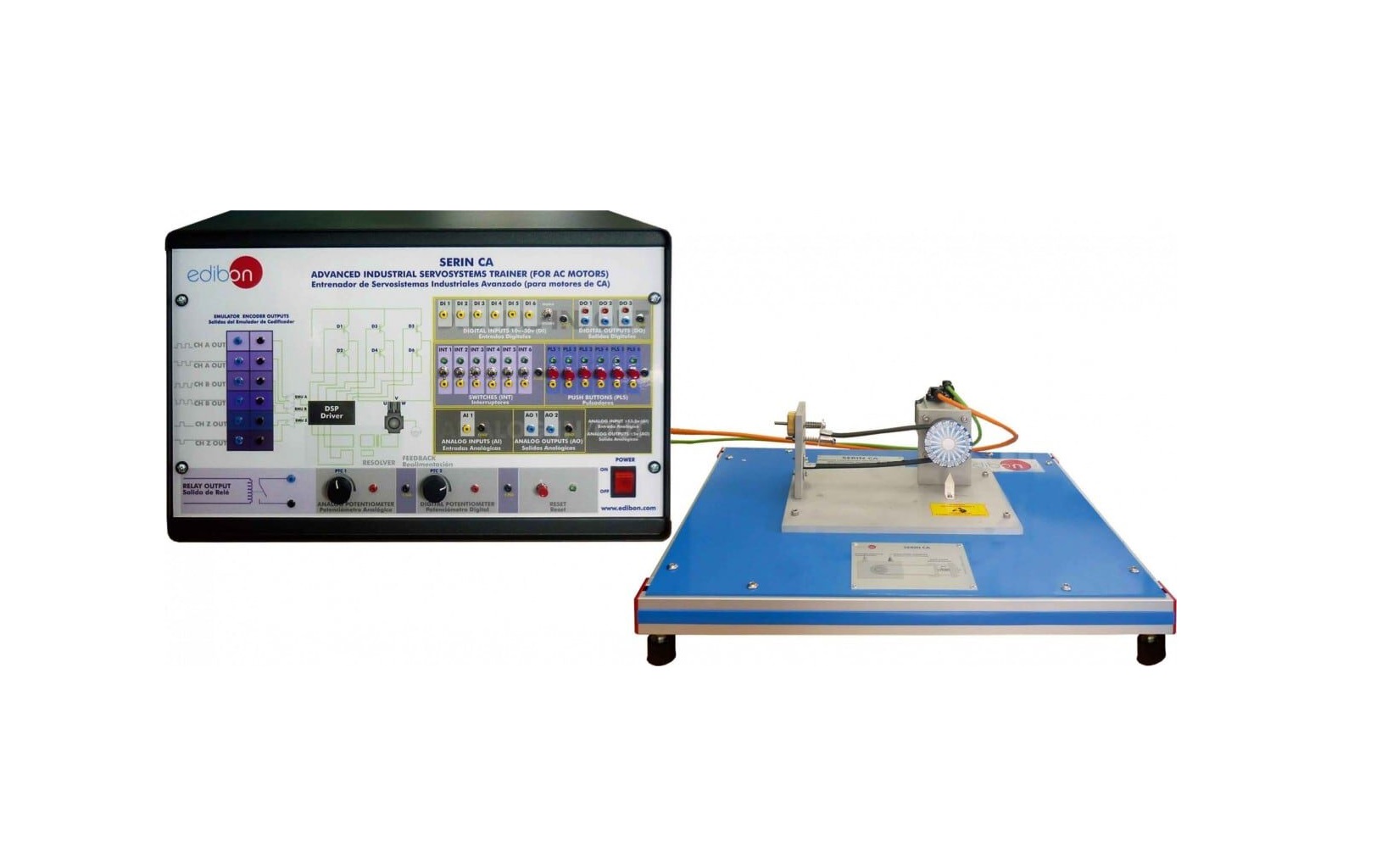

The “SERIN/CA” trainer consists on a Control Interface Box connected to a three-phase motor and to a computer (computer not included). The control interface has a resolver for three-phase motors that controls the speed, position and currentof the motor.
The RS232 communication between the control interface and the computer provides the “SERIN/CA” the possibility of commanding the motor from the computer and visualize the most important signals ofthe motor.
Velocity, Position and Torque Control.
It allows predefined moves and programming.
SPECIFICATION
- Control Interface Box:
Front panel:
Output 1: this output has the “Fault Reset” function enabled for defect. It can be used to indicate a problem with the drive.
Output 2: this output has the “Brake” function enabled.
Emulative encoder outputs
Analog output 4 (relay)
Analog outputs of the DAC monitor
6 digital inputs
6 buttons
6 switches
Switch outfitter of digital inputs
Analog input
Voltage supply: three sources of continuous in the unit. One of +24 V. DC, another of +12 V. DC and other of -12 V. DC.
Two potentiometers
Ignition switch.
Back panel:
Voltage supply that feeds the unit with 220 V of alternating current.
Three-phase output when solving
Connection port in series
Connection with the feedback
- Motor:
AC motor, 0.7 kW, 2.8 A ac, 4200 rpm, 320 V dc, 7.2 Nm, IP65, Sensor RESOLVER :1 Speed, 1X/RX, 3 phase
