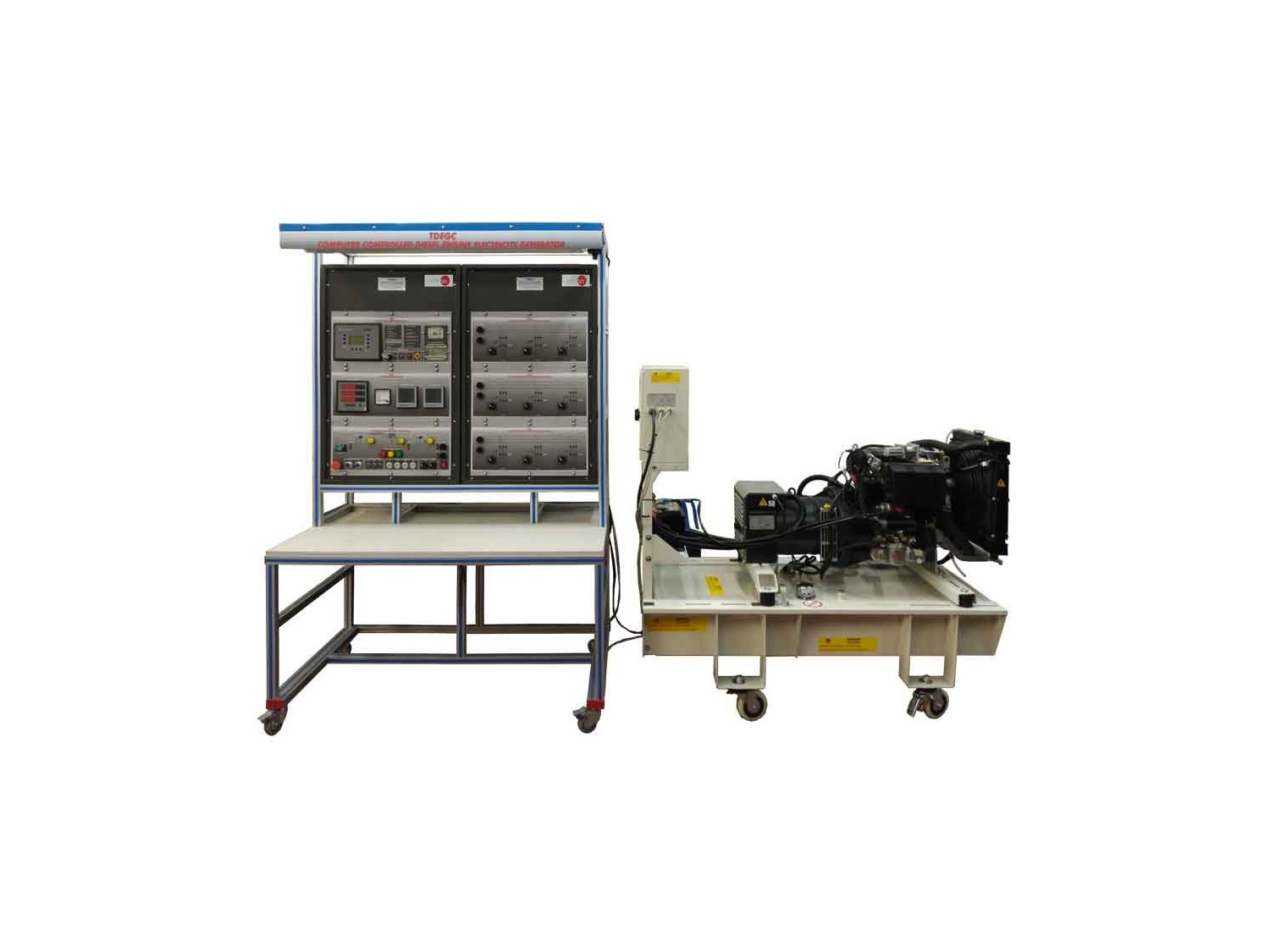

The diesel power generating set with integrated control and monitoring system has been developed by Edibon to conduct studies and research on the operation process of real power plants running with diesel gensets. This equipment is composed of two main parts: the engine-generator set and the control, signaling and monitoring panels where the regulators, controllers, instrumentation and electronics necessary for the correct operation of the equipment are integrated.
The engine-generator group is mounted on a baseplate which in turn serves as a tank for the diesel fuel. All its components are visible for a good understanding of the operation of the parts of the group. The air filter, the oil filter, the electronic linear accelerator, the starter battery, as well as many other elements that make up any industrial engine-generator set are clearly visible.
SPECIFICATION
TDEGC/50 or TDEGC/60 Unit:
Control and Supervision Panel:
Three-phase measurements of the grid and generator voltage.
Three-phase measurements of the generator current and power.
Single-phase measurement of the grid current
Motor: over/sub speed (12).
PID Power Factor Control.
PID Excitation Control.
PID Active Power Control. PID Speed Control.
Instrumentation Panel
- DC Power Analyzer:
Rated voltage range: 0-100 Vdc.
Rated current range: 0-10 A.
Communication port RS-485
- DC Analog Ammeter:
Rated current range: 0-2.5A.
- AC Generator Power Analyzer:
Display for instantaneous variables: 3×3 digits.
Display for energies: 8+1digits.
- Voltage:
VL-N = 185V to 460V.
VL-L = 320V to 800V
- Current:
Phase Current: 0.03 to 10A.
Neutral Current: 0.09 to 10A.
- AC Mains Power Analyzer:
Display for instantaneous variables: 3×3 digits.
Display for energies: 8+1digits.
- Voltage:
VL-N = 185V to 460 V.
VL-L = 320V to 800 V.
- Current:
Phase Current: 0.03 to 10 A.
Neutral Current: 0.09 to 10 A
Frequency: 48 to 62Hz 0.1Hz.
